HE-RX371
RX371 5.7寸恶劣环境专用，全金属外壳控制器

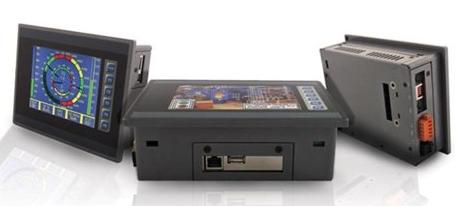

新型RX371真彩触摸式OCS具有速度更快，功能更强的处理器，更耐用的触摸屏，全金属的外壳，防护等级更高，并且支持可插拔式I/O等多种扩展方式。OCS(Operator Control Station)是一款功能强大，稳定可靠的工业控制产品，它将控制器，人机界面，I/O及网络通讯完美的集于一体，画面编辑和控制程序开发使用一套免费的软件Cscape即可完成。
RX371采用新型5.7寸TFT真彩触摸屏，超过32K色彩。屏幕的显示效果更佳，亮度更高，可达700NIT。RX371的逻辑扫描速度更快，可达0.2mS/K。RX371拥有先进的控制功能，浮点运算，多回路PID自整定以及字符串处理功能等。另外，RX371还内置了100Mbit标准以太网，支持多种互联网功能，如基于HTML的网页浏览功能，通过互联网网页实时显示数据状态，FTP文件传输，数据远程访问以及控制器远程编程调试等。此外，还集成了MicroSD®卡存储功能，用户可以方便的存储历史数据、过程数据或屏幕截图，可作为无纸记录仪使用（最大达2GB）。用户也可以使用MicroSD卡更新下载控制器程序，这对于OEM客户和需要远程支持的客户，都是十分方便的。
RX371支持多种I/O扩展模块。RX371基本单元包括控制，人机界面和各种通讯功能。可以方便的扩展金属SmartStack I/O，远程SmartStix I/O和SmartMod I/O模块。可通过USB- B口与PC连接对控制器进行编程和界面设计。USB- A口可以连接U盘进行数据传输。
多种特性专为恶劣环境使用设计
RX371专门强化了防振方面的设计，抗振性能极佳。另外，触摸屏采用防弹玻璃制作所使用的材料Lexan，屏幕防撞击能力更强更耐用。所有功能按键进行了改进，可操作三千万次以上，并且具有更好的触感。其次，RX371全金属外壳设计，为控制器提供更好的防护。
1. 抗冲击触摸屏
2. 金属外壳
3. 高速的逻辑扫描和屏幕刷新率
4. 700NIT的屏幕亮度
5. 共形涂层印制电路板
6. 坚固的功能键估计可以动作3000多万次
7. 支持SmartStack插拔式扩展I/O模块
8. 支持MicroSD存储卡
9. 内置以太网和Web功能
10. 有USB的B端口，便于编程
11. 支持USB的A接口与USB的闪存进行数据交换
12. 使用我们的免费编程软件Cscape™编程
13. 可拆卸的端子，便于布线
|
 |
HE-RX371
Specifications
| Display Type (LCD with Backlight) |
5.7" QVGA TFT w/32,000 colors. 700 NIT |
| Display Screen Dimensions |
320 x 240 pixels |
| Display Memory |
2.75 MB |
| User Keys |
5 user-defined Function Keys and 1 System
Key designed for 30 Million + operations |
| Number of Screens Supported |
1023 |
| Serial Ports |
2 Serial Ports, RS-232/RS-485 |
| SmartStack Support |
Up to (4) metal SmartStacks directly on back |
| SmartStix Support |
Yes |
| Ethernet |
10/100 MBPS Ethernet |
| Removable Media |
MicroSD® Storage up to 2 GB |
| USB A Connector |
Support for USB Flash Drives |
| USB Mini B Connector |
Programming Port |
| Temperature Range |
-30° to 60° C |
| Approvals |
CE, UL and C-UL pending |
| Environmental |
NEMA 4X and IP66 |
| Impact Rating |
Exceeds requirements for IK7 |
| Height |
5.964" (151.49mm) |
| Width |
7.682" (195.12mm) |
| Depth |
2.425" (61.60mm) |
| Weight |
54 oz (1.53kg) |
| Horner Part Number |
HE-RX371 |
|
显示类型（带背光液晶显示） |
5.7寸,QVGA TFT触摸屏，32K色彩，700NIT亮度 |
|
显示屏幕尺寸 |
320 × 240像素 |
|
显存 |
2.75MB |
|
按键 |
5个用户自定义的功能键和1个系统设置键
可以操作30万次 |
|
屏幕数量 |
可支持1023个画面 |
|
串行端口 |
支持RS232和RS485接口 |
|
支持本地I/O扩展 |
最多直接接4个SmartStack模块 |
|
I/O远程扩展 |
支持SmartStix远程模块 |
|
内置以太网 |
10/100Mbps |
|
移动存储 |
支持MicroSD卡（最大2G） |
|
USB连接器A口 |
支持USB闪存 |
|
USB连接器B口 |
编程通讯口 |
|
工作温度范围 |
-30° to 60° C |
|
认证 |
CE、UL和C-UL |
|
环境 |
符合NEMA和IP66等级 |
|
高度 |
151.49mm |
|
宽度 |
195.12mm |
|
厚度 |
61.60mm |
|
重量 |
1.53Kg |
|
Horner产品型号 |
HE-RX371 |
|
HE-RX371

RX371 Ruggedized Controller
The RX371 is the most rugged OCS Horner has ever manufactured and is designed for harsh environment use, with its cast aluminum and steel chassis, ruggedized heavy duty function keys and impact resistant Lexan® touch screen. Snap-on I/O is provided by up to four metal SmartStack® units directly on the back. SmartStix® expansion I/O is also supported.
The RX371 features a bright new 5.7” QVGA,TFT screen with over 32K colors. The screen is bright with a 700 NIT brightness rating. RX371 is fast and has a typical logic scan rate of 0.2mS/K. RX371 has advanced control capabilities including floating point, multiple autotuning PID loops and string handling capabilities. In addition, the RX371 features embedded Ethernet and supports many Internet capabilities such as remote data access, programming, hosting HTML-based web pages, and FTP file transfer. Plus, it has a built-in MicroSD® memory slot that allows users to easily store machine or process data and screen captures (up to 2GB). Programs can be updated and loaded through MicroSD®…a real advantage for OEMs or those supporting distant sites.
The RX371 Color Touch OCS has optional I/O features, too. The base RX371 unit provides
control, operator interface, and communication functionality while the optional metal
SmartStack® or remote SmartStix® units provide I/O connectivity. A USB Mini B connector
allows easy connection to your PC for programming and interface design. A USB A connector
supports data exchange with USB flash drives.
Ruggidized features for harsh enviroments and rigorous use.
The RX371 is unique as it has been optimized for enhanced temperature, environmental, shock and vibration protection. Circuit boards are conformally coated, adding a layer of protection. Plus, the touch screen is constructed of Lexan® and is impact resistant. All function keys have been designed for 30 Million + operations with outstanding tactile feel. Finally, the RX371 incorporates a metal chassis designed for rigorous use.
Magnetic Technology Function Keys for over 30 Million Operations
|
HE-RX371
Left: Click photo to view short video clip of a 500 gram Steel Ball dropping directly onto the face of the RX371's Lexan Screen at a temperature of -30° C.
(Video clip is in slow-motion for ease of viewing.)
|
